Vacuum Casting
Vacuum casting is a low-cost but reliable method for making a small number of high-quality prototypes based on a master model. This method is ideal for rapid prototyping used in engineering testing, proof-of-concept and display demos to name a few. At TCS, we have a dedicated team of mold makers who are experts at creating vacuum casting molds which offer fine surface details while being robust enough to make up to 20 copies per mold with short lead times.

What Is Vacuum Casting?

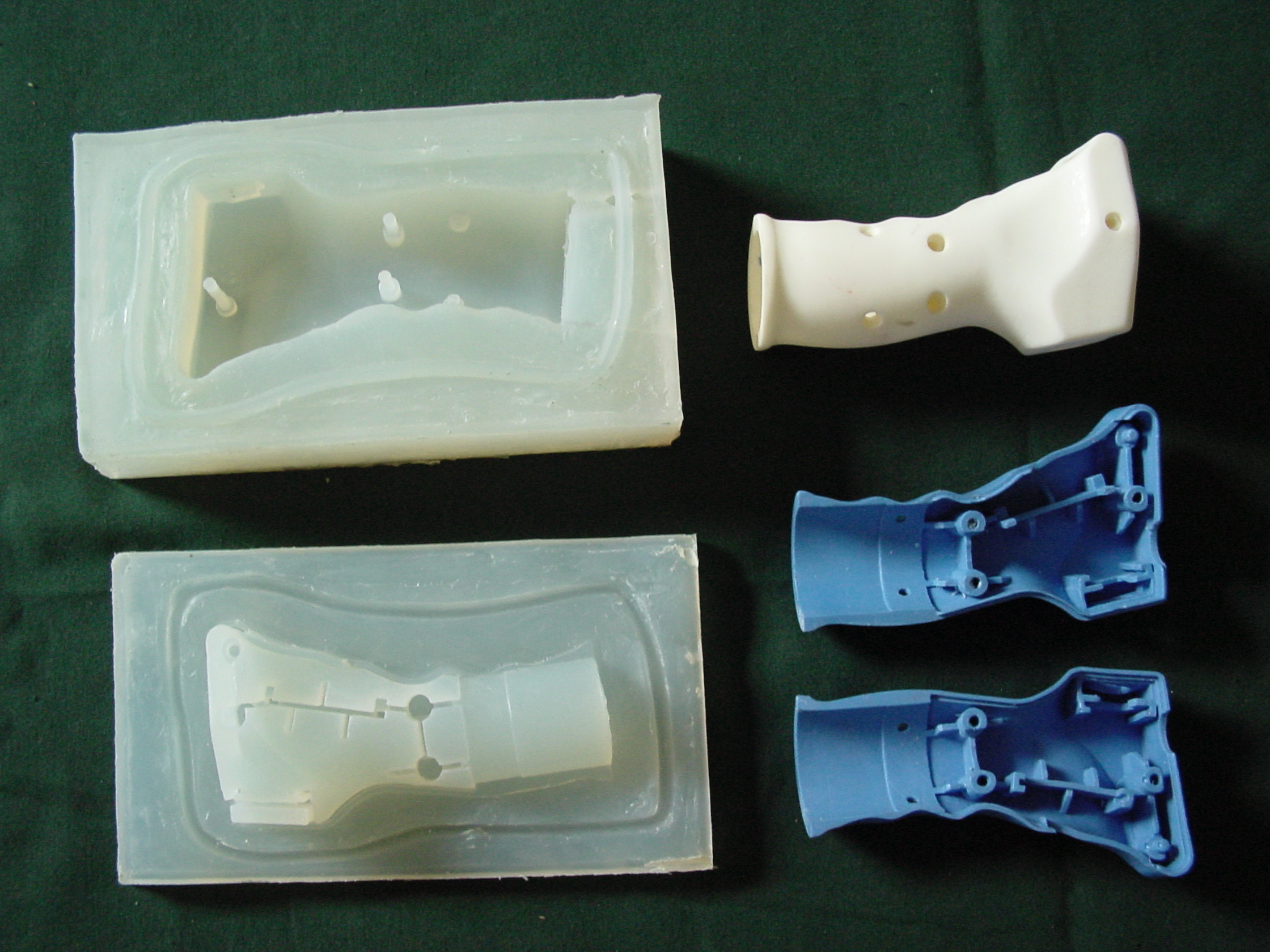

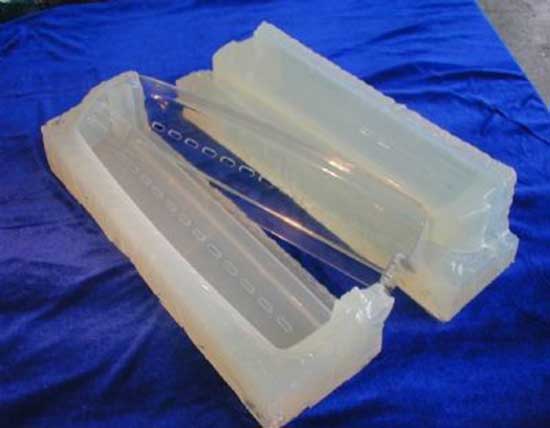

Vacuum casting involves making a mold out of silicone rubber, usually based upon a master model created by CNC machining or one of our rapid prototyping services.

Advantages Of Vacuum Casting

Vacuum casting is an ideal choice for rapid prototyping because:
1.There is a low initial cost since it doesn’t require investment in tooling
2.The high fidelity of the mold gives excellent surface details requiring little or no post-processing
3.Many different molding polymers are available that can be pigmented to meet your color requirements
4.Molds can be ready in a few days once the master model has been created
5.Molds are durable up to approximately 50 copies so it’s great if you need more than one copy
6.We provide overmolding, so that different types and hardnesses of plastic can be molded together into a single unit
7.It is an excellent option for testing multiple variations of a prototype design for rapid product development

Vacuum Casting Process
Stage One: Making the Master Mold
1.First, a solid master model or pattern is required.  This can be made of any stable material, and can either be supplied by you or alternately created by Star using our 3D printing services or via CNC machining.
2.Typically master patterns are made in plastic or metal, the only requirement being that they are able to withstand a temperature of 40° C for an extended period of curing.
3.We then suspend this pattern inside of a casting box, which we half-fill with liquid silicone rubber.  This is placed inside of a curing oven and heated at 40° C until the silicone is fully cured.
4.The casting box is then filled with additional silicone liquid which is also heated and cured.  The two halves are treated with a releasing agent for later separation.
5.Once fully cured, the silicone rubber mold is opened up along the parting line and the original master removed.
Stage Two: Making the Parts
1.During mold making, our craftsmen strategically place a series of fine holes surrounding the master pattern.  These holes will be used to later draw air pressure out of the mold.
2.Once the master has been removed, there is now a hollow cavity in the silicone mold which is an exact reverse image of the original.
3.We can fill this cavity with any number of molding polymers to suit your design requirements. Once the cavity is filled, it’s placed into a vacuum chamber which draws air out of the cavity and pulls the liquid plastic into all of the recesses of the mold, ensuring an exact conformity to the original shape.
4.Finally the mold goes into a curing oven one more time, creating a solid and stable replica of your original master pattern.

Tolerances

The finished dimensions of vacuum cast parts is dependent on the accuracy of the master model, part geometry and casting material. In general, a shrinkage rate of 0.15% is to be expected.

Materials

Hundreds of casting polymers are commercially available to reproduce any conceivable hardness and surface texture.  It is also possible to make parts that are fully opaque, translucent or completely transparent depending on your application.

Finishing Services
At TCS, we provide a range of finishing services to ensure the part meets your expectations. Our post-processing methods include sanding, painting, polishing, aqua blasting, drilling, tapping and threading holes, pad printing, silk screening and much more. We also have a team dedicated to quality control and inspection and we pride ourselves on being ISO certified.
